Farfisa intercoms in Miami, USA

MATRIX STYLE
AUDIO AND VIDEO MODULES

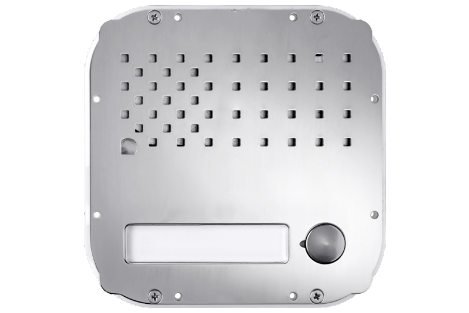

MAS11PED
Dim: mm 115x115
Audio module with door speaker and 1 call button for 1+1 intercom systems electronic call and for DF6000 digital systems.

MAS43CED
Dim: mm 115x115
Colour camera and audio module with 1 call button. Autoiris 3.6 mm lens. For 4+1 reduced wiring systems and for DF6000 digital systems.

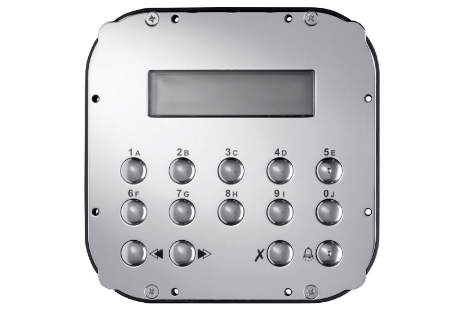

TD6100MAS
Dim: mm 115x115
Digital keypad made by front plate and 14 steel buttons. It is equipped with 16 characters on 2 lines display. It allows the user chime by dialling the corresponding number and electric lock release by entering the 4-digit private code.The electronic index is also integrated. Scrolling function allows to display the tenant names in alphabetical sequence and user chime. It contains up to 259 name users. This integration allow to reduce further space compared to different
corresponding modular compositions.

MODY
AUDIO AND VIDEO MODULES

MD41D
Dim: mm 124x90x18
B/w camera module with fixed 3.6 mm lens, balanced video signal output.

MD10D
Dim: mm 124x90x18
Module for electric door speaker - MD30 without call buttons.

MD11D
Dim: mm 124x90x18
Single-row module for electric door speaker - MD30, with 1 call button.

MD12D
Dim: mm 124x90x18
Single-row module for electric door speaker - MD30, with 2 call buttons.

CD6130
Digitizer for conventional push button panels.

• Contained in a Mody single module.


• Up to 128 users coding.


• Dim: 124x90x18 mm


4244
Button interface.

• Kit of 4 cards of 4 codes each.


• To be installed on button modules.


• The interface outputs are connected to the CD4130, through flat cable.


MODY
DIGITAL DOOR STATIONS

TD6100
Dim: mm 124x180x18

• Digital push-button panel with anodised aluminium front panel, 12-button keypad and 4-digit display.


RD4120
Dim: mm 124x90x18

• Electronic index, equipped with backlit 32-character LCD display, this allows the internal station list to be consulted in sequence by using only 2 buttons (forward and backward) in standard or fast mode.


• It contains up to 200 names.


• Complete with the call button of the selected internal station and always installed together with the TD6100 module.


Additional button modules

MD21
Dim: mm 124x90x18
Module with 1 additional call button.

MD22
Dim: mm 124x90x18
Module with 2 additional call buttons.

MD23
Dim: mm 124x90x18
Module with 3 additional call buttons.

MD24
Dim: mm 124x90x18
Module with 4 additional call buttons.
